30 Amp Generator Power Inlet Box L5-30p 3 Prong Inlet Box 125/250 Volt
30 Amp Generator Power Inlet Box L5-30p 3 Prong Inlet Box 125/250 Volt
30 Amp Generator Power Inlet Box L5-30p 3 Prong Inlet Box 125/250 Volt

30 Amp Generator Power Inlet Box L5-30p 3 Prong Inlet Box 125/250 Volt

  • Vendor
    OurGen
    Sale price
    $59.00
    Regular price
    $68.00 You save 13%
    Unit price
    per
    FREE Shipping on All Generators | Ends:

    Availability:

    Estimated Arrival: Between May 23 and May 25. *ETA to the USA Only

    Shipping & Returns: Free Shipping. All The Time.

    Why Buy From Our Generators
    10AWG Generator Power Inlet Box
    Outdoor generator inlet boxes keep dangerous carbon monoxide fumes away from your house when the generator is working. Our generator power inlet box passed the certifications of ETL. Mount the box outside and run the wires to a transfer switch or panel. Then, when emergency power is needed, connect a generator cord to the inlet box.

    • 30 AMP Generator Inlet Box

    • Enough Space & Green Light Indication

    • Weatherproof Baking Finish

    • Practical Twist & Lock Design

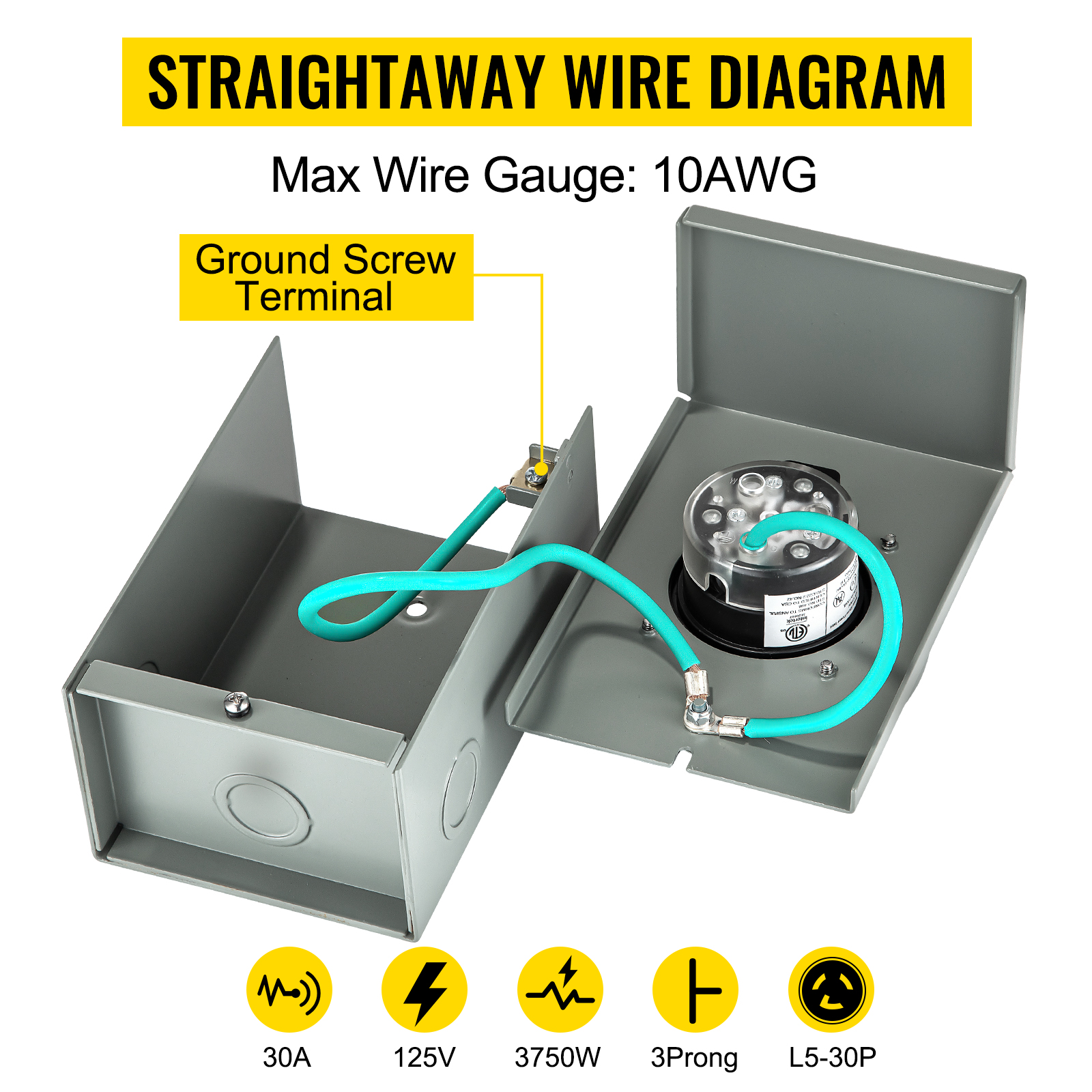

    Straightaway Wire Diagram

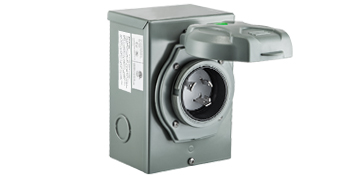

    ETL listed outdoor electrical inlet box is prepared for a 30 Amp L5-30P generator cord. It is designed to be installed outdoors in an open area where the generator is ready for backup power during a power outage.

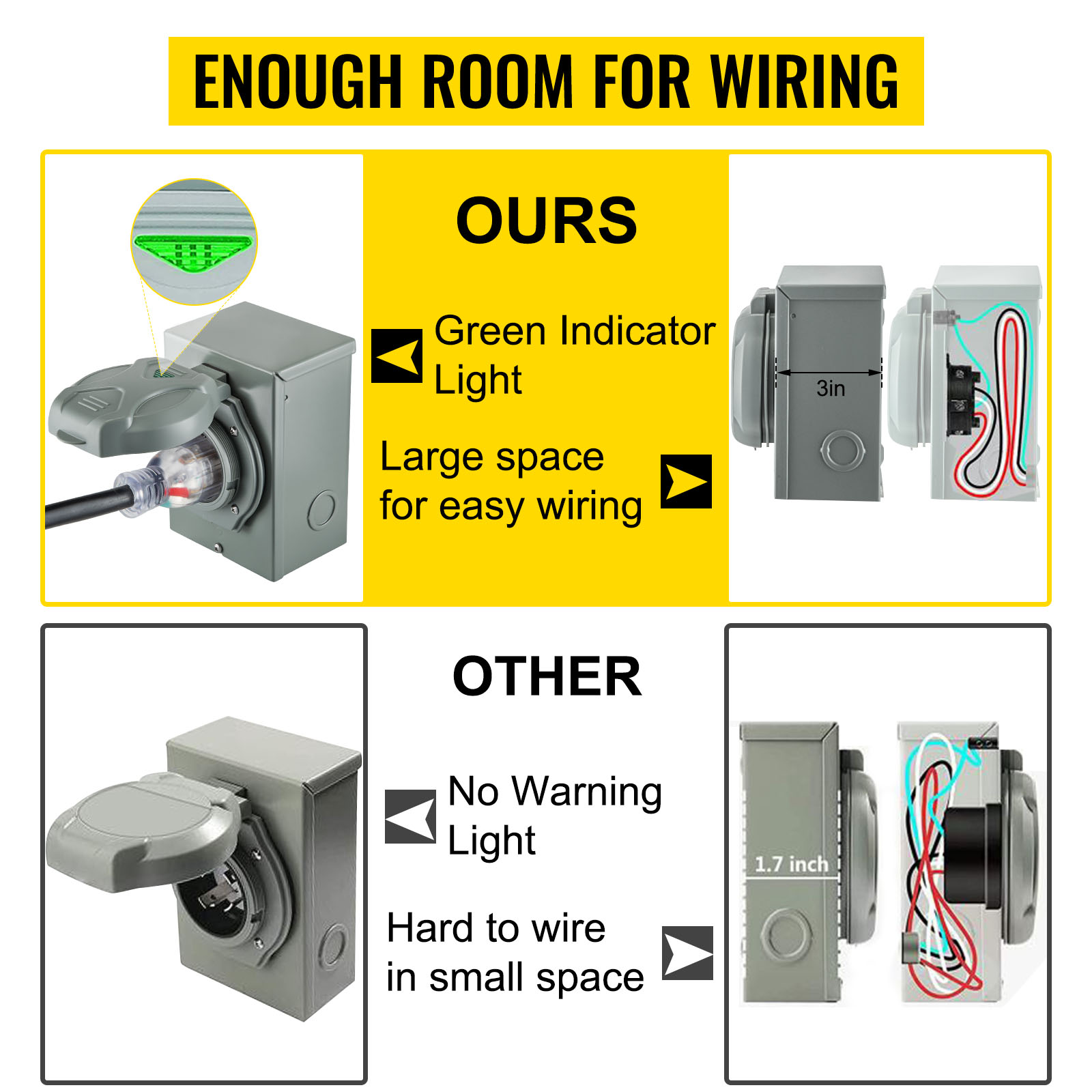

    Enough Room for Wiring
    It's easy to get the wires in the proper spot with the removable front panel. This watertight electrical inlet box is wired through an outside wall directly to the transfer switch or panel, eliminating the need for cords running through windows or doors.

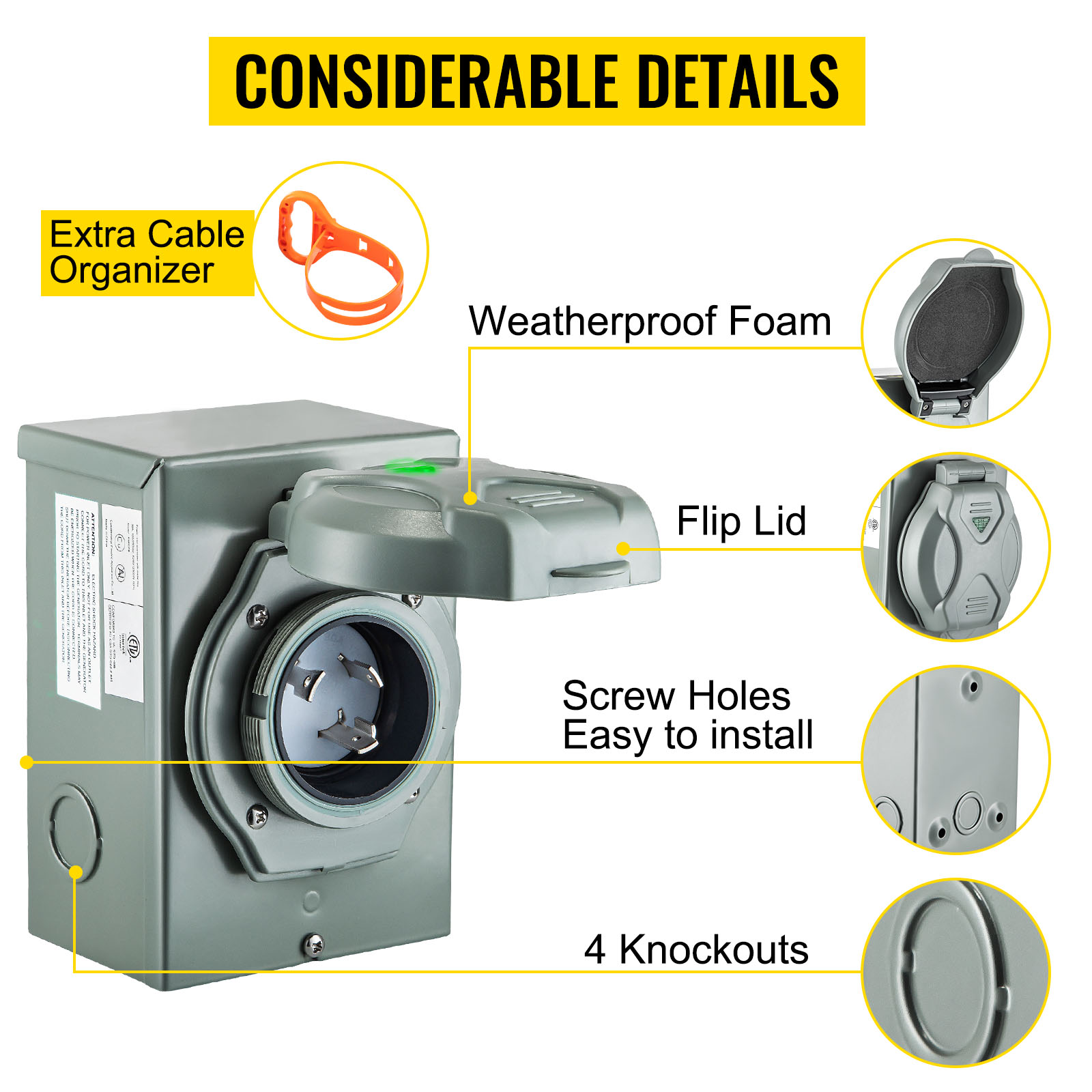

    Considerable Details & Sturdy Structure
    4 recommended areas for punching the hole: left, right, bottom, and back. For security and convenience purposes, they need to be drilled through with drilling tools. And there are pre-punched sturdy screw holes for easy mounting on the wall.

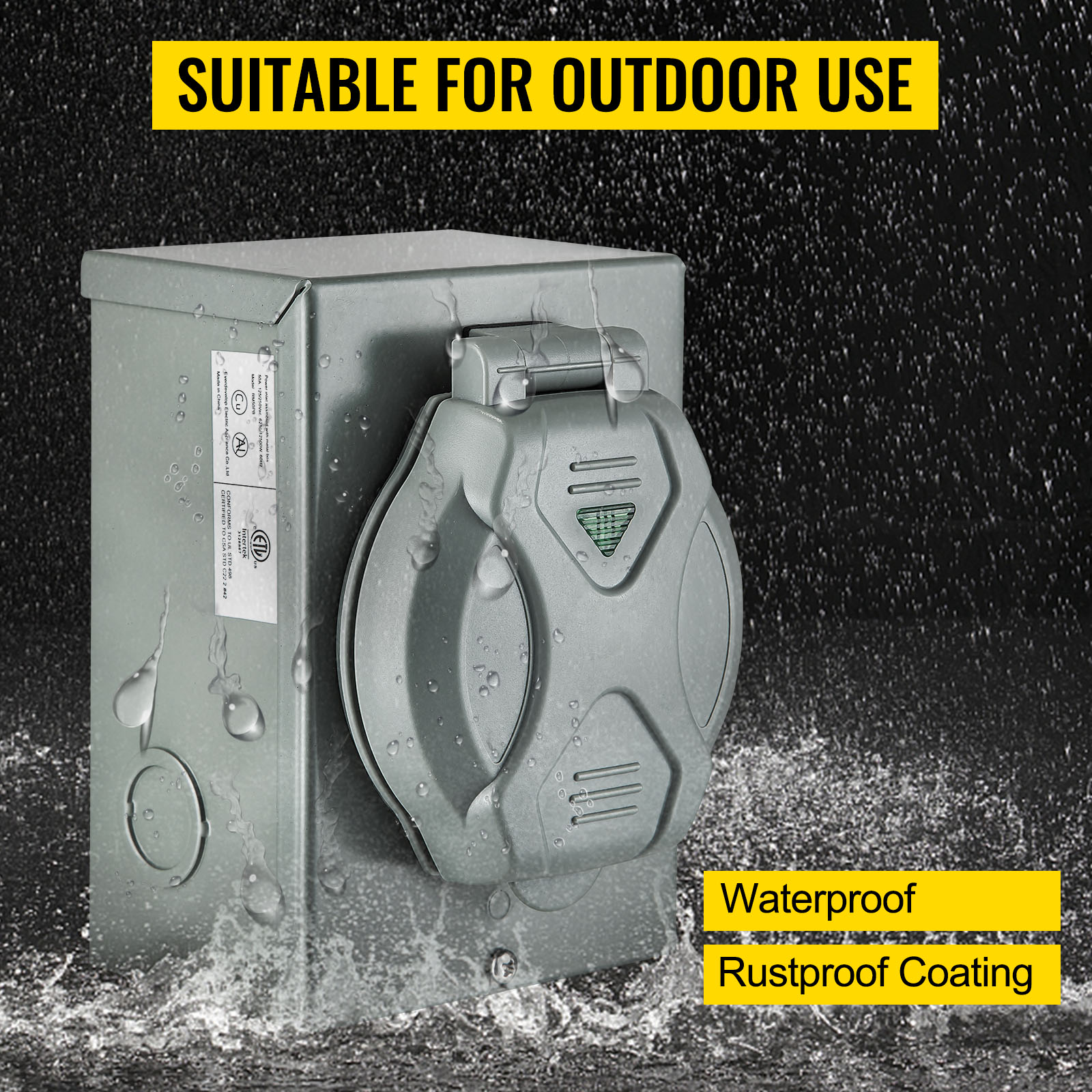

    Suitable for Outdoor Use
    Our power inlet box is constructed of rugged steel and covered with corrosion-resistant coating inside and out. The rustproof coating design and flip design can easily keep from much bad weather, including wind, rain, dust, blizzard, etc.
    Tight Connection
    The power inlet box for generators adopts the design of a locking structure. When the plug is inserted and twisted into the locked position, it will not slip from the power inlet box due to wind, hurricane, heavy rain, snow, etc.
    Extensive Usage
    Our power inlet box is ideal for connecting your wires to a generator to provide power in an emergency power shortage. You can install the inlet box on outer walls, wooden houses, stakes, tree trunks as you required.
    Specifications

    • Model: VV-IB-L5-30P

    • Color: Grey

    • Current: 30AMP

    • Certificate: ETL

    • Wire Gauge: 10AWG

    • Outlet: Three-plug

    • Voltage: 125 Volts

    • Material: Coated Steel

    • Configuration: L5-30P

    • Product Weight: 2.4lb/1.1kg

    • Maximum Wattage: 3750 Watts

    • Four Knockouts: Left, Right, Bottom and Back

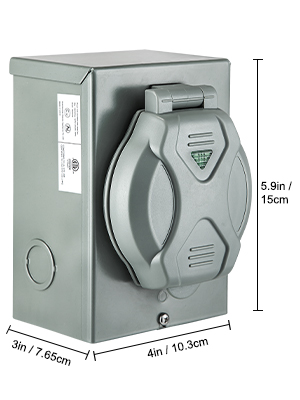

    • Product Dimension: 4 x 3 x 5.9inch/10.3 x 7.65 x 15cm
    Package Content

    • 1 x L5-30P Inlet Box

    • 1 x Plastic Strap
